Theta series transducers come in a compact programmable design, they are available with LCD display, and on-site configurability. Dedicated versions measuring: Current, Voltage, Frequency or Power are also available.
Theta 10A/10V – AC Current or AC Voltage Transducer
Theta 10A/10V transducer converts a sinusoidal AC Current or AC Voltage into a load independent DC Current or a load independent DC Voltage proportional to the measured value.
Features
- Accuracy class 0.2 as per International Standard IEC/EN 60688
- Output Response Time < 250 ms
Theta 20A/20V – LCD AC Current or AC Voltage Transducer
The Theta 20A/20V compact programmable Transducers are available with LCD display and are completely on-site configurable.
Features
- True RMS measurement
- On-site programmable inputs
Theta 30P – LCD Power/Phase Angle/Power Factor Transducer
The Theta 30P compact programmable Transducers are available with LCD display and are completely on-site configurable.
Features
- True RMS measurement
- On-site programmable inputs

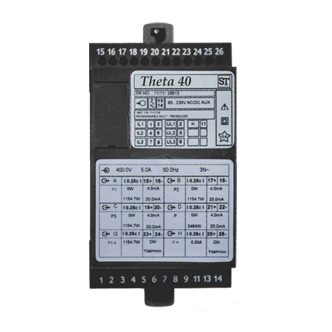

Theta 40 – Programmable Multi Transducer
This series of multi-transducers simultaneously measure several variables of an electric power system and process them to produce 2 or 3 or 4 analogue output signals.
Features
- For all heavy-current power system variables
- Upto 6 outputs (2A + 4D or 4A + 2D or 2A or 3A)
Theta 50 – Isolator with Analogue outputs
Theta 50 is used to electrically isolate input, outputs & power supply.
Features
- Accuracy class 0.2 as per International Standard IEC/EN 60 688
- Output Response Time < 250 ms
Theta 60M – Universal Temperature Transducer
Transmitter Theta 60M available in housing S17 clipped onto a top-hat rail and in housing S17 screw hole mounting brackets pulled out.
Features
- Electric insulation between measured variable, analogue output signal and power supply / Safe isolation acc. to EN 61 010
Theta 60R – Pt 100 Temperature Transducer
Transmitter Theta 60R available in 1 channel version, in housing S17 clipped on to a top – hat rail and 2 channel version, in housing S17 hole mounting brackets pulled out.
Features
- Measuring ranges configurable with DIP switch and potentiometer
- Red LED’s indicator: an open or short-circuit

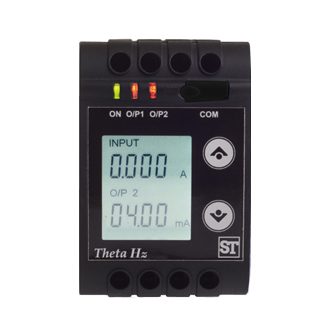

Theta Hz – LCD Frequency Transducer
Theta Hz the transducer is used for frequency measurement.
Features
- Fully onsite programmable input range
- Available in Single or Dual output type
Theta M – Three Phase (3or4 wire) AC Power Transducer
The Theta M transducer is used to measure and convert parameter of Three-phase 3W/4W AC power network with balanced or unbalanced system.
Features
- True RMS measurement
- Fully onsite programmable input PT & CT ratio

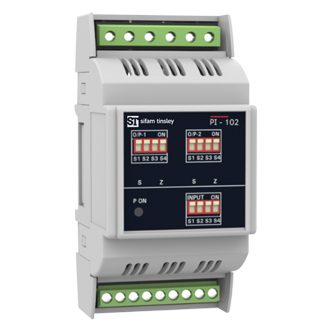

Theta PI102 – Programmable Dual output DC Isolator
The purpose of the THETA PI-102 is to electrically isolate input, outputs and power supply.
Features
- All input signal range and output signal range are user programmable.
- Electric isolation between input, outputs and power supply.
Theta PI-101 Programmable Dual Output DC Isolator
The Theta PI-101 is used to electrically isolate input, output and power supply.
Features
- All input signal range and output signal range are user programmable
- Electric isolation between input, output and power supply.

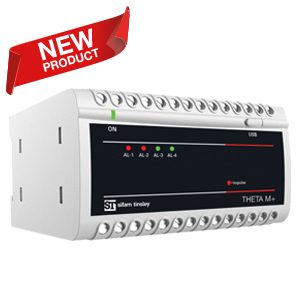

Theta M+
Theta M+ transducer is used to measure and convert parameters of a single-phase or three-phase AC system with unbalanced or balanced load.
Features
- 4-in-1 programmable transducers
- Fast Response Time
Theta 60I – Isolating Amplifier
The purpose of the isolating amplifier Theta 60I is to electrically insolate input and output signals
Features
- 252 standard input and output combinations selected by soldered jumpers
- User-specific input and / or output ranges
P17G – Separator (supplied from Current Loop)
P17G:– separator supplied from a current loop.
Features
- For the separation of measuring signals (eg in PLC).
- Thin casing – 6.2 mm.
P17 – Temperature Transducer 4/20mA
The P17 transducer is destined to convert the signal from temperature, resistance or voltage sensors into a 4…20 mA current signal.
Features
- Can be treated as an active load forcing a current proportional to input signal changes from the supplying circuit
P19 – Temperature and Humidity Transducer
P19 Temperature and Humidity Transducer.
Features
- Built-in temperature and humidity sensor
- Calculation of selected physical quantities (dew-point temperature, absolute humidity).
P18D/P18L – Temperature Humidity Sensor
P18 Transducer of temperature and standard signals.
Features
- Built-in temperature and humidity sensor
- Calculation of selected physical quantities (dew-point temperature, absolute humidity)
P20H – Programmable DC Transducer
Transducers of P20H types are applied for the continuous conversion of d.c. voltage and d.c. current into a standard d.c. current, d.c. voltage signal or RS-485 digital signal.
Features
- Preservation of the output signal at overflows
- Transmission parameters through RS-485.
P20 – Programmable Temperature Signal Transducer
The P20 programmable transducer is destined to convert the temperature, resistance, voltage from shunt and standard signals into a standard constant-current or constant-voltage signal.
Features
- Input: programmable universal input
- Output: 0/4…20mA, 0…10V.
P21Z – Programmable AC Current or AC Voltage Transducer
Measuring transducer P21Z type is destined to a continuous conversion of a.c. current or a.c. voltage without the constant component or frequency into a standard d.c. current or d.c. voltage signal or digital signal.
Features
- RS-485 with Modbus protocol
- Value of output signal when limit value are exceeded.
P20Z – AC Current or AC Voltage Transducer
Measuring transducer P20Z type is destined to a continuous conversion of the rms current value or alternating voltage without the constant component into a standard d.c. current or d.c. voltage signal.
Features
- Input: 0…60 / 100 / 150/ 250/ 400 / 500 / 600 V a.c., 0…1 / 5 A a.c.,
- Output: 0/4…20mA, 0…10V.
P30O – LCD Pulse/Frequency/Turns/Operation Time Transducer with Ethernet
P30O Transducer of pulses, frequency, turns and operation time.
Features
- 2 universal pulse inputs
- Version: standard with SD card with ethernet and internal memory
P30H – LCD Programmable DC Circuit Parameters with Ethernet
P30H is a transducer which was designed to photovoltaic , battery, telecommunication and railway installations. P30H measures and records current, voltage, power, energy and other d.c. circuit parameters.
Features
- Programmable input
- DC parameters.
P30P – LCD Transducer 1 Phase Power Network with Ethernet
Transducer of 1-phase power network parameters.
Features
- Measurement of 1-phase power network parameters.
- Conversion of measured value in an output signal on the base of the individual characteristics 1 or 2.
P30O Frequency Transducer
Programmable transducer P30O type is destined to convert of number of pulses, number of working hours, frequency, period and rotational speed into a digital or standard current or voltage signal.
Features
- 2 universal pulse inputs.
- 3 versions.

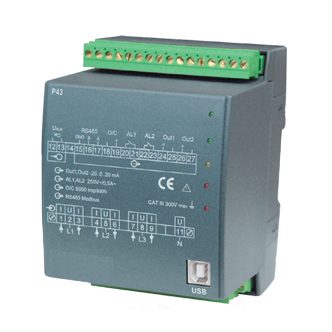

P43 – Programmable 3 Phase Power Transducer
Programmable Transducer of 3-Phase Power Network Parameters.
P30U – DC Temperature Transducer
P30U transducer is designed to convert temperature, resistance, standard voltage and current signals into a standard DC voltage or DC current signal.
Features
- Display: LCD 2 x 8 characters with backilit,
- Supply: 85..253 V a.c./d.c. or 20…40 V a.c./20…60 V d.c.

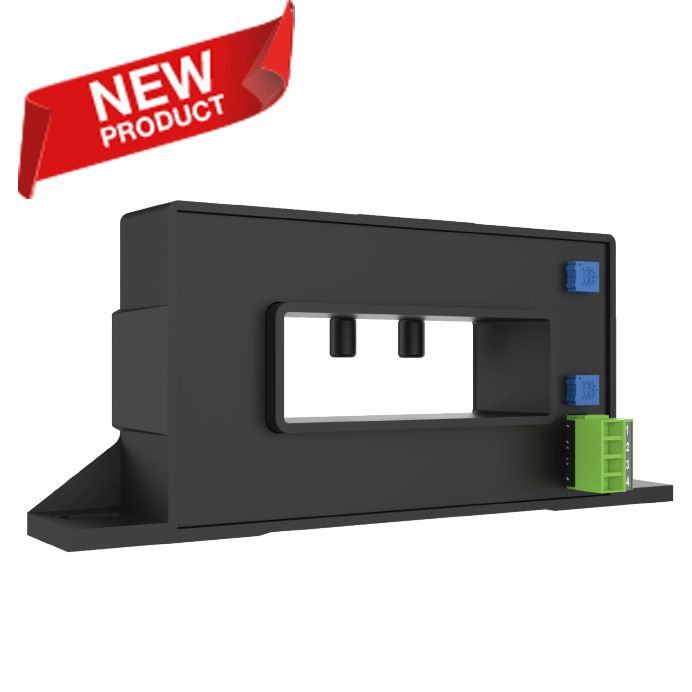

Theta HSC Series Open Loop Current Transformer
The Theta HSC Series Open Loop Current Transformer is a transducer designed to convert input current signal into output voltage.
Features
- Hall effect measuring principle
- Low insertion losses
