Traditional DIN specification panel meters are available ad 90 degree moving iron or moving coil / rectifies. These can be further modified to customer’s exact requirements, to include; polycarbonate windows, red supplementary pointers, coloured bands, etc.

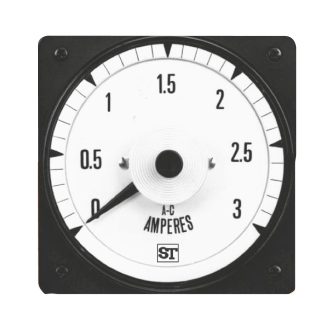

Platinum Series Switchboard Meters
High quality range of Switchboard Instruments with class 1 accuracy, complying with American ANSI-C39.1(1981) specifiaction.
Features
- Rugged pivot and jewel suspension
- Class 1 Accuracy

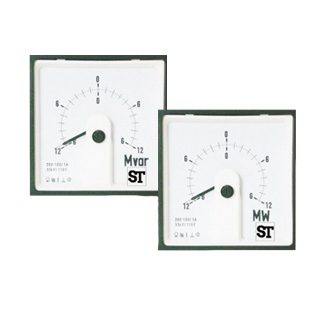

Sigma Series LML Meter
Sifam Tinsleys Sigma Series LML Meter are suitable to indicate forward (export / out going) and reverse (import/in coming) power flow as well as inductive and capacitive reactive power.
Features
- 3 phase unbalanced load 3 or 4 wire AC Systems

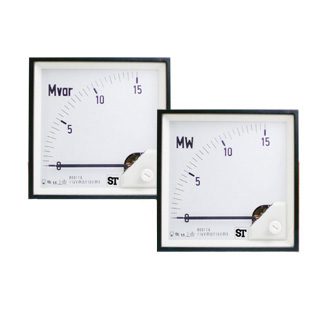

Sigma Series LM Meter
Sifam Tinsleys Sigma Series LM Meter. These instruments are suitable to indicate forward (export / out going) and reverse (import / in coming) power flow.
Features
- 3 phase unbalanced load 3 or 4 wire

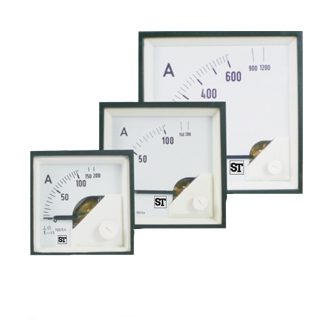

SiDE (Moving Iron AC Meter)
SiDE (Moving Iron AC Meter). The moving iron panel meters, DE 48/72/96/144 housed in moulded polycarbonate cases are suitable for the measurement of AC currents
Features
- Scale interchangeability
- Near linear scale
SiDS (Moving Coil DC Meter)
SiDS (Moving Coil DC Meter) The moving coil panel meters, DS 48/72/96/144 housed in moulded polycarbonate cases are suitable for the measurement of DC currents and voltages.
Features
- Linear scale
- Glass filled polycarbonate housing (UL 94-V-0)

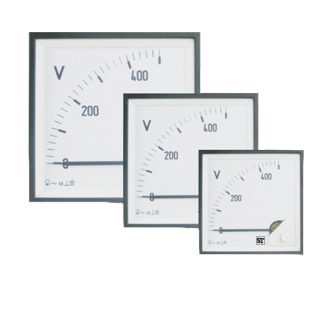

SiDG (Moving Coil AC Meters with Rectifier)
SiDG (Moving Coil AC Meters with Rectifier) The moving coil, rectifier meters, DG 48/72/96/144 housed in moulded polycarbonate cases are suitable for the measurement of AC currents and voltages.
Features
- Less VA burden
- Linear scale

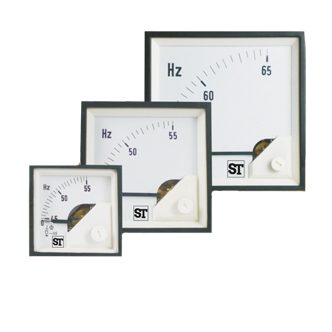

SiFM Series (Pointer Frequency Meter)
SiFM Series (Pointer Frequency Meter) The pointer type frequency meters, FM 48/ 72 / 96 / 144 housed in moulded polycarbonate cases are suitable for the measurement of frequencies in the range of 45 to 450 Hz.
Features
- Linear Scale
- Glass filled polycarbonate Lousing
Electronic Synchroscope
Sifam Tinsleys Electronic Synchroscope is designed to provide an illuminated indication of actual phase difference between the BUS Voltage(reference voltage) & the GENERATOR Voltage(incoming voltage).

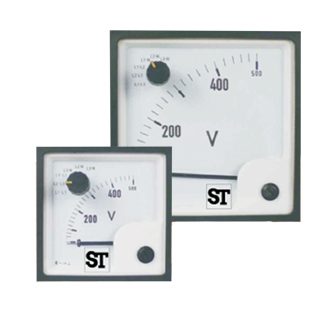

Selector Switch Meter
Sifam Tinsleys Selector Switch Meter The moving iron, panel meters, EQ 72/96 housed in moulded polycarbonate cases are suitable for the measurement of AC currents.
Features
- 3 ph 3 wire & 4 wire voltage & currentmeasurement possible
- Near Linear scale
Sigma Series EB-BM Meter
Sifam Tinsley Sigma Series EB-BM Meter The maximum demand ammeters BM 48 and BM/EB 72/96 housed inmoulded polycarbonate cases,monitor the most economic use.
Features
- Scale Interchangeability
- Near linear scale for MI scale in EB

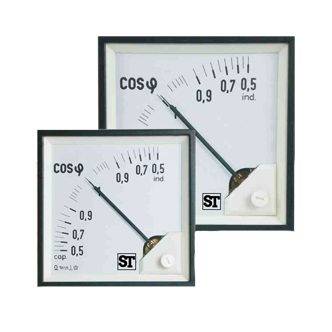

Power Factor Meter (PF)
Sifam Tinsleys Power Factor Meter (LF 72 / LF 96) The moving coil indicators and a phase angle adjuster are used to monitor changing power factor conditions on ir-reversible balanced load systems.
Features
- Knife edge pointer
- Glass filled polycarbonate housing

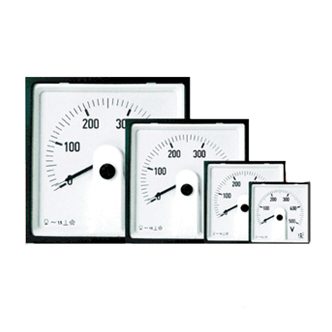

SiDS DGL (Moving Coil AC Meter with Rectifier)
Sifam Tinsleys Sigma Series DGL Meter The moving coil, rectifier panel meters, DGL 48/72/96/144 housed in moulded polycarbonate cases are suitable for the measurement of AC currents and voltages.
Features
- Better resolution
- Linear scale

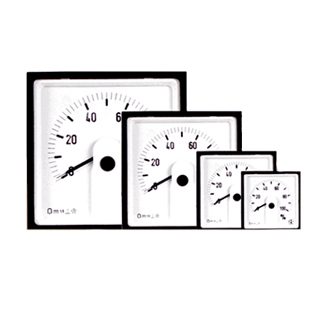

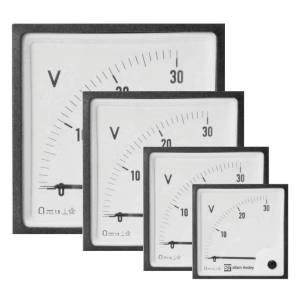

SiDS DSL (Moving Coil DC Meter)
Sifam Tinsleys Sigma Series DSL Meter The moving coil panel meters, DS 48,72,96,144 housed in moulded polcarbonate cases are suitable or the measurement o DC currents and voltages.
Features
- Better resolution
- Linear scale

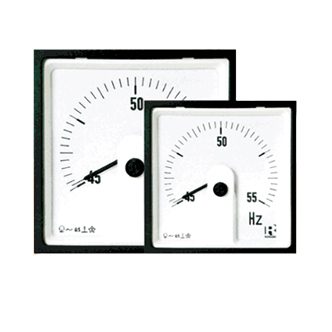

SiDS FML (Pointer Frequency Meter)
Sifam Tinsleys Sigma Series FLM Meter The pointer type frequency meters, FML 96 and FML 144 housed in moulded polycarbonate cases are used for the measurement of frequencies in the range of 45 to 450 Hz.
Features
- Better resolution
- Linear scale

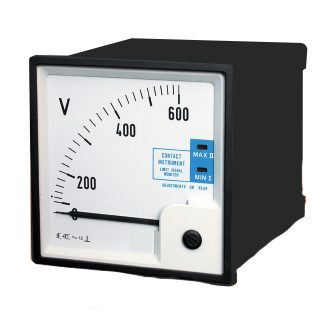

Analogue Meter Relay
Sifam Tinsley offer an Analogue meter relay with minimum and maximum relay adjustable set limits, when the monitored AC or DC signal moves outside the chosen set point limits.
Features
- Two output relays of 600 VA switching power
- Setting over or under limits

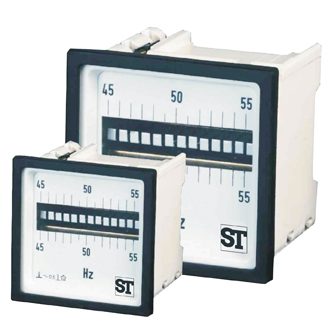

FQ1
The Sifam Tinsley FQ1 reed type frequency meters, FQ 72 / 96 housed in moulded polycarbonate cases are suitable for the measurement of frequencies in the range of 45 to 55 Hz.
Features
- Glass filled polycarbonate housing (UL 94 V-0)
- Easily replacement of glass and bezel
