Sifam Tinsleys range of Power Supplies
E Power e 17024A
E Power e 17024A 1Phase, 115-230Vac I/P& 24Vdc 120-180W O/p, adjustable o/p voltage range 2-27Vdc. High efficiency ≥87% & compact size (w-h-d) 55x110x105mm, DIN rail mounting.
Features
- Suitable for extreme environment
- Universal AC input range 85-264 V.
Elite Series 3612 A Battery Chargers
Sifam Tinsley Elite Series 3612 A 1 Phase, Universal input range 90-280 VAC, 127-396 VDC, high efficiency ≥ 86% & extremely compact (w-h-d) 55x110x105mm & DIN rail mountable with protections.
Features
- Switch mode technology
- Automatic 3 stage charge profile.
Elite Series 72XX Battery Chargers
Sifam Tinsley Elite Series 72XX 1 Phase, Universal input range 90-280 VAC, 127-396 VDC, high efficiency ≥ 86% & extremely compact (w-h-d) 55x110x105mm & DIN rail mountable with protections.
Features
- Switch mode technology
- Automatic 3 stage charge profile.
Elite Series 120XX Battery Chargers
Sifam Tinsley Elite Series 120XX 1 Phase, Universal input range 90-280 VAC, 127-396 VDC, high efficiency ≥ 86% & extremely compact (w-h-d) 55x110x105mm & DIN rail mountable with protections.
Features
- Switch mode technology
- Automatic 3 stage charge profile.
Flex 50024A
1Phase, 115-230Vac I/P& 24Vdc 480-600W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥92% & compact size (w-h-d) 85X120X140mm, DIN rail mounting.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 24 Vdc 60°C.
Flex-E 9024B
2Phase, 200-500Vac I/P& 24Vdc 95-120W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥87% & compact size (w-h-d) 55X110X105mm, DIN rail mounting.
Features
- Input: 200 – 500 Vac
- Output: 24 Vdc 60°C.
Flex-e 9024A
1Phase, universal input range 85-264 VAC, 125-350 VDC, "Power Good" relay output high efficiency ≥87% & extremely compact (w-h-d) 55x110x105mm & DIN rail mountable.
Features
- Input: single-phase: 85-264 VAC, 125-350 VDC
- Output: 24 Vdc +/- 3%
Flex 6024A
1Phase, 115-230Vac I/P& 24Vdc 40-70W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥88% & compact size (w-h-d) 50x120x50mm, DIN rail mounting.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 24 Vdc 50°C
Flex-e 17024A
1Phase, 115-230Vac I/P& 24Vdc 120-180W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥87% & compact size (w-h-d) 55x110xX105mm, DIN rail mounting.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 24 Vdc 60°C
Flex 50024B
3Phase, 400-500Vac I/P& 24Vdc 480-600W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥91% & compact size (w-h-d) 85x120x140mm, DIN rail mounting.
Features
- Input: 3-phase: 400 – 500 Vac
- Output: 24 Vdc 60°C
Flex 17024B
2Phase, 230-400-500Vac Vac I/P& 24Vdc 120-180W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥91% & compact size (w-h-d) 55x110x105mm, DIN rail mounting.
Features
- Input: 230 – 400 – 500 Vac
- Output: 24 Vdc 60°C
Flex 28024A
1Phase, 115-230Vac I/P& 24Vdc 240-330W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥91% & compact size (w-h-d) 72x115x135mm, DIN rail mounting.
Features
- Input: 115 – 230 Vac
- Output: 24 Vdc 60°C
Flex 28024B
2Phase, 230-400-500Vac Vac I/P& 24Vdc 240-330W O/p, Adjustable o/p voltage range 22-27Vdc. High efficiency ≥91% & compact size (w-h-d) 72x115x135mm, DIN rail mounting.
Features
- Input: 230 – 400 – 500 Vac
- Output: 24 Vdc 60°C
Flex-e 15xxA
1 phase, universal input range 90-264 VAC, 124-370 VDC, high efficiency ≥87% & extremely compact (w-h-d) 18x90x62mm & DIN rail mountable.
Features
- Input: single-phase: 85-264 VAC, 124-370 VDC
- Output: 15/12 Vdc +/- 3% (1A)
Flex-e 30xxA
1 phase, universal input range 90-264 VAC, 124-370 VDC, high efficiency ≥87% & extremely compact (w-h-d) 54x90x62mm & DIN rail mountable.
Features
- Input: single-phase: 85-264 VAC, 124-370 VDC
- Output: 24 Vdc +/- 3% (1.5A)
Flex-e 45xxA
1 phase, universal input range 90-264 VAC, 124-370 VDC, high efficiency ≥87% & extremely compact (w-h-d) 54x90x62mm & DIN rail mountable.
Features
- Input: single-phase: 85-264 VAC, 124-370 VDC
- Output: 24 Vdc +/- 3% (1.75A)
Flex-e 60xxA
1 phase, universal input range 90-264 VAC, 124-370 VDC, high efficiency ≥87% & extremely compact (w-h-d) 54x90x62mm & DIN rail mountable.
Features
- Input: single-phase: 85-264 VAC, 124-370 VDC
- Output: 24 Vdc +/- 3% (2.5A)
Flex 9012A (1 Phase)
1 phase, 115-230 Vac I/P& 12Vdc 95 to 120 W o/p, adjustable o/p voltage range 10 – 14 Vdc. High efficiency ≥91% & compact size (w-h-d) 55x110x105 mm & DIN rail mountable.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 12 Vdc 60°C
Flex 15012A (1 Phase)
1 Phase, 115-230Vac I/P& 12Vdc 120 to 150 W o/p, adjustable o/p voltage range 10 – 14 Vdc. High efficiency ≥91% & compact size (w-h-d) 55x110x105 mm & DIN rail mountable.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 12 Vdc 60°C

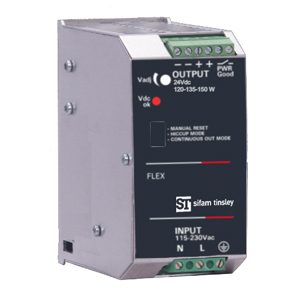

Flex 15024A (1 Phase)
1 phase, 115-230 Vac I/P& 24Vdc 120 to 150 W o/p, adjustable o/p voltage range 22 – 27 Vdc. High efficiency ≥91% & compact size (w-h-d) 55 x 110 x 105.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 24 Vdc 60°C
Flex 15048A (1 Phase)
1 phase, 115-230Vac I/P& 48Vdc 120 to 150 W O/p, adjustable o/p voltage range 41 – 55 Vdc. High efficiency ≥91% & compact size (w-h-d) 55 x 110 x 105 mm & DIN rail mountable.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 48 Vdc 60°C

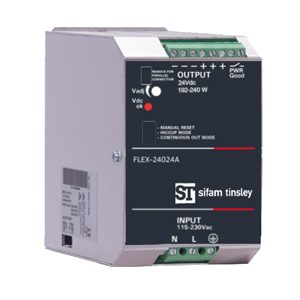

Flex 24024A (1 Phase)
1 phase, 115-230 Vac I/P& 24Vdc 192 to 240 W o/p, adjustable o/p voltage range 22 – 27 Vdc. High efficiency ≥91% & compact size (w-h-d) 72 x 115 x 135mm & DIN rail mountable.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 24 Vdc 60°C
Flex 48024A (1 Phase)
1 phase, 115-230Vac I/P& 48Vdc 384 to 480 W O/p, adjustable o/p voltage range 22 – 27 Vdc. High efficiency ≥91% & compact size (w-h-d) 85 x 120 x 140mm & DIN rail mountable.
Features
- Input: single-phase: 115 – 230 Vac
- Output: 24 Vdc 60°C
