Sifam Tinsley

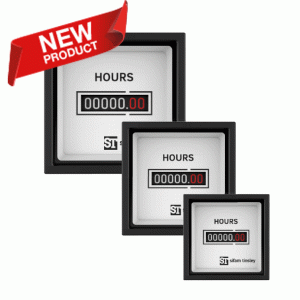

Elapsed Time Meter (Hours Run Meter)

ETM48, ETM72 & ETM96 Elapsed Time Meters (Hours Run Meters) are used to monitor ON/RUN time of plant/equipment which allows the user to check functions such as Production Efficiency, Cost and service period monitoring.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Features
Downloads

Polycarbonate housing having UL 94 V-0: All Sifam Tinsley meters are housed in robust case with classical finish. The case is made of polycarbonate, which is flame retardant and non-drip and confirms to international regulations UL 94 V-0. Polycarbonate is a very tough and light weight engineering plastic material which has got the best mechanical properties very close to a metallic housing. It is 10% glass filled, glass fibers give it extra toughness.
Terminal screws and clamps: Self lifting terminal screws are connected to the terminal clamps. Self lifted clamps gets lifted with the terminal screw while unscrewing, this simplifies clamping of the connectors or wire and save the time.
Terminal protection with click-fitting back cover: All Sifam Tinsley meters are supplied with a self-clicking back cover which covers the terminals. This is very important feature especially for the voltmeter because these meters are usually connected on the front panel which can be opened and can be hazardous for the engineer while the maintenance of the panel is being done. The self-click avoids problems of loosing the screws and washers.
Easy replacement of glass and bezel: Easy replacement of glass and bezel is possible in Sifam Tinsley meters at customer end without any tool. The glass with zero knob and bezel are click fitted in the meter.
IP-52 Protection: Sifam Tinsley meters conform to protection standard of IP-52 (optional IP-54 and IP-65 can be provided) as per IEC-529 (DIN 40050). The window flap shut automatically when the instrument is installed in a switch-board or instrument cut-out. The O-ring incorporation in zero knob ensures protection from fine dust particles and water.

Elapsed Time Meter Datasheet
