NP41

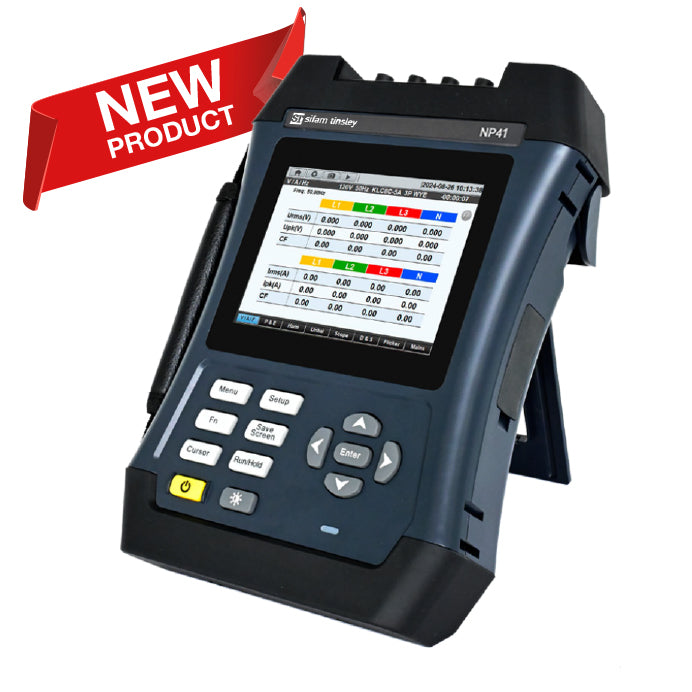

NP41 - Portable Class S power quality analyser

The NP41 is the professional device to analyse the power system quality, supply the harmonics analysis and power quality data analysis. Analyzer adopts DSP＋ ARM dual processor hardware platform and embedded operating system, which can calculate a large number of electrical parameters and process all data quickly. The device offers extensive and powerful measurement functions to check power distribution system, so it can detect quality of power grid and electrical characteristics rapidly and conveniently. The analyser has large touch-screen color LCD display interface, and easy-to-use keyboard.

    Sales & Support

    A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

    Call 01376 335271
    • 5.6" color LCD touch screen with refreshed User Interface,
    • new functions: inrush current measurement, data flagging, inverter efficiency, mains signaling, harmonic power,
    • waveform real-time display and recording (4 voltages/4 currents),
    • half cycle RMS measurement (voltage and current),
    • measurement of TRMS currents up to 6000 A (with additional current clamps),
    • measurement in 1-phase and 3-phase systems (3- and 4-wire),
    • measurement of voltage, current, harmonics, power, energy, inrush current, flicker and others,
    • graphical presentation of data in a waveform and vector diagram,
    • record of events: interruptions, dips, overvoltages,
    • power quality according to EN-50160 standard or user-defined limit,
    • internal memory for data recording (recording period from 2 hours to 1 year),
    • registration of user-defined parameters in the 32GB internal memory,
    • Ethernet interface for remote operation of the analyzer,
    • USB Host to move archive data and screenshots to an external USB memory,
    • safety standards: EN 61010-1, CAT III 1000V / CAT IV 600V,
    • IP53 protection grade.
    NP41 Datasheet
    NP41 User Manual
    NP41 Presentation
