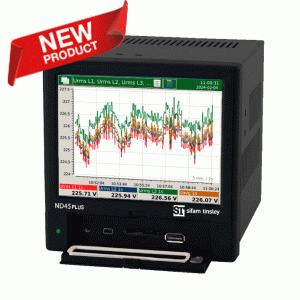

ND45Plus

New from Sifam Tinsley the ND45Plus Power network analyser / recorder with IEC 60870-5-104 protocol.

Measurement and recording of over 500 electric energy quality parameters, class A for selected parameters, harmonics and interharmonics up to 51st, energy measurement in 4 tariffs, recording of measurements before and after events (dips and swells), configurable display and web server - these are some of ND45PLUS power analyser advantages (successor of ND45 analyser).

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • Measurement and recording of over 500 electric energy quality parameters acc. to EN 50160, EN 61000-4-30 standards.
  • Measuring Class A.
  • Operation in 3 or 4-wire, 3-phase, balanced or unbalanced power networks.
  • Analysis of current and voltage harmonics and interharmonics up to the 51st for class I.
  • Flicker
  • 4-quadrant energy measurement in 4 tariffs
  • Monitoring up to 6 additional energy meters with pulse output
  • Recording measurements before and after events (dips and swells)
  • Configurable archives of actual values and events recording.
  • Data archiving on an SD card - memory up to 32 GB.
  • Binary inputs (optionally)
  • Relays, binary or analogue outputs (optionally)
  • E-mail messages in case of alarm occurs,
  • Web Server (HTTP protocol), FTP Server, DHCP client
  • Interfaces:
  • RS-485 Modbus Slave,
  • Ethernet 100 Base-t (Modbus TCP/IP Server),
  • USB device & host.
  • IEC 60870-5-104 communication protocol for data transmission in industrial process control systems and energy sector.
  • Time synchronization via external GPS module - STR  receiver (option).
  • Colour touch screen: LCD TFT 5.6”, 640 x 480 pixels.
  • IP54 protection grade from the frontal side.
  • Automatic synchronisation of RTC clock with the NTP time server.
  • External dimensions: 144 x 144 x 104mm.
  • Power supply range:
  • 85–253 V AC or 90–300 V DC, 24 V DC.
ND45 Plus Datasheet
