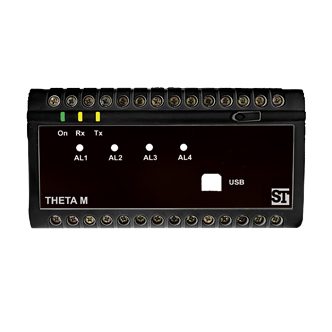

The Theta M transducer is used to measure and convert parameter of Three-phase 3W/4W AC power network with balanced or unbalanced system.
It ensures that the measurement and conversion of measured values into standard analog current signals.Relay outputs signal the overflow of the selected quantities, and the pulse output can be used for the consumption monitoring of the 3- phase active energy.
Features
• True RMS measurement
• Fully onsite programmable input PT & CT ratio
• Detection and signaling of incorrect phase sequence
• THD Measurement
• Programmable parameters through the RS-485 interface or USB when using the free eCon configuration software
• Onsite selectable analog output range (0…20mA/4…20mA/-20…+20mA)
• Fast and easy installation on DIN RAIL or onto a wall or in a panel using optional screw hole bracket
• Connection Terminal : Conventional Screw type
Digital download files available for Theta M.
