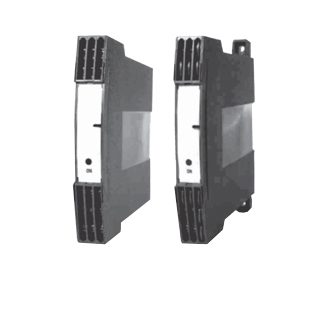

Transmitter Theta 60R available in 1 channel version, in housing S17 clipped on to a top – hat rail and 2 channel version, in housing S17 hole mounting brackets pulled out. The transmitter Theta R converts the input variable-a signal from a resistance thermometer Pt 100- to a temperature linear output signal.
Features
• Measuring ranges configurable with DIP switch and potentiometer
• Red LED’s indicator: an open or short-circuit
• Electric isolation between input & output 2.3kV and power supply to all other circuits 3.7kV – fulfils EN 61 010
• Provision for either snapping the transmitter onto top-hat rails or securing it with screws to a wall or panel
• Housing only 17.5mm wide (size S17) / low space requirement
Digital download files available for Theta 60R.
