VA8022
Back to Environmental Meters

Sifam Tinsley

VA8022

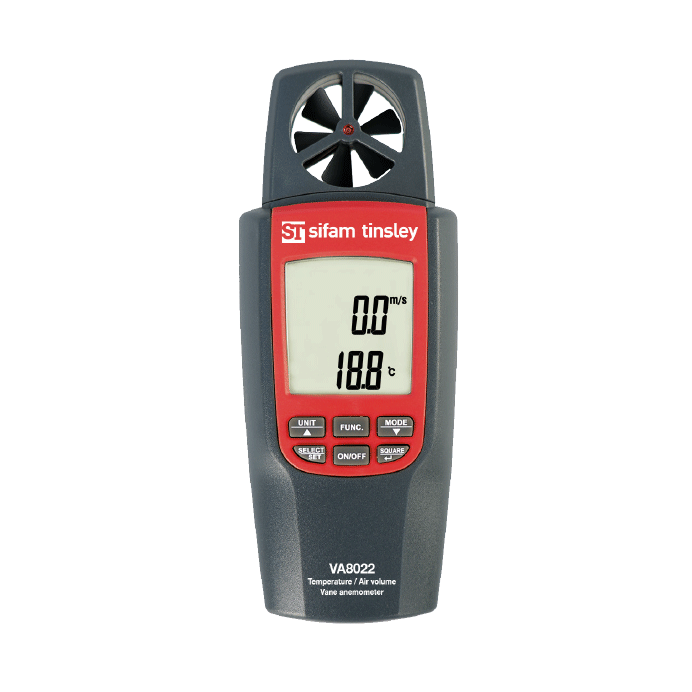

VA8022 Vane Anemometer. Wind speed measurement series Anemometer is composed of the three instrument: Type A(Temperature/Vane anemometer)/Type B(Temperature/Humidity/Vane anemometer)/Type C(Temperature/Air volume/ Vane anemometer). This Anemometer is normally used to measure the wind speed and volume flow at ventilation outlets. In addition to the measurement of humidity and temperature, climatic conditions can also be analysed

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • Display: the top display line always shows the velocity or volume, the bottom display line always show the temperature or humidity.
  • Parameters:
    Velocity: m/s,km/h,fpm,mph,kts,Beaufort
    Air volume: m³/h, m³/s, CFM
    Temperature: °C,°F
    Humidity: %RH，td
  • Resolution:
    Velocity: 0.1m/s，fpm；
    Air volume: 1m³/h；
    Temperature: 0.1℃ 0.1℉；
    Humidity: 0.1%RH;
  • Range:
    Velocity: 0.4 ~ 20m/s, 80 ~ 4000fpm
    Air volume: 99999 m³/h
    Temperature: -10 ~ 50℃, 14 ~ 122℉
    Humidity: 0 ~+100%RH
  • Accuracy:
    Velocity: ± (2% of reading + 0.3m/s) ± (2% of reading + 60fpm)
    Air volume: ±(3% of reading) m³/S
    Temperature: ±1℃ ±1.8℉
    Humidity: ± 3%RH (5~95%RH)
  • Sample rate: 2 time /sec
  • Operating environment: -10℃ ~ 50 ℃(14℉~122℉), 0～80%RH
  • Storage environment: -20℃ ~ 60℃(-4℉~140℉)，0 ~ 80%RH
VA8022 Datasheet
