VA42RP

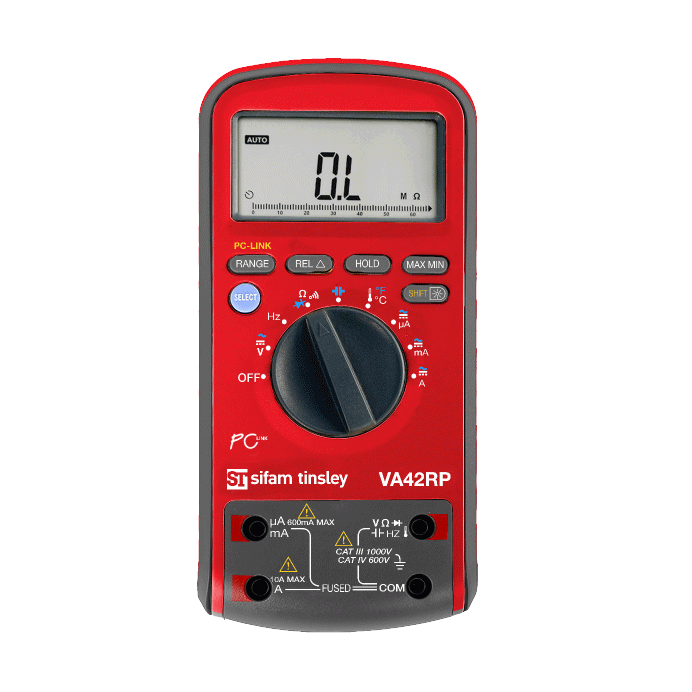

VA42RP Digital Multimeter. This auto scan digital multimeter has function of true RMS measurement and relative measurement. The auto scan digital multimeter also have the PEAK HOLD function option. This auto scan digital multimeter with Peak hold function is ideal for use in the fields, workshop, school, hobby and home applications. This instrument complies with IEC 61010-1: 2001, CAT Ⅲ 1000V and CAT Ⅵ 600V overvoltage standards. See Specifications

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • DATA HOLD mode
  • True RMS measurement
  • Relative measurement mode
  • Manual ranging and Autorange mode
  • Analog indication bar
  • Auto power off setting
  • AC and DC Voltage measurement
  • Temperature measurement
  • Current measurement
  • Resistance Diode Continuity measurement
  • Capacitance measurement
  • Frequency measurement
  • PC Link
  • General specifications
  • Environment conditions: 1000V CAT Ⅲ and 600V CAT Ⅳ
  • Pollution degree: 2
  • Altitude < 2000m
  • Operating temperature: 0~40℃, 32℉~122℉(<80% RH, <10℃ non-condensing)
  • Storage temperature: -10~60 ℃, 14℉~140℉(<70% RH, battery removed)
  • Temperature Coefficient: 0.1×(specified accuracy) / ℃ (<18℃ or >28℃)
  • MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
  • Fuse Protection: A and mA: F 0.63A/1000V ∅10.3×38; A: F 10A/1000V ∅10.3×38.
  • Sample Rate: 3 times/sec for digital data.
  • Display: 6600 counts. Automatic indication of functions and symbols.
  • Range selection: automatic and manual.
  • Over Range indication: LCD will display “OL”.
  • Low battery indication is displayed when the battery is under the proper operation range.
  • Polarity indication: “–” displayed automatically.
  • Power source: 9V
  • Battery type: 6F22.
  • Dimensions: 190(L)×90(W)×40(H) mm.
  • Weight: 500g. Approx. (battery included).
VA42RP Datasheet
