VA40R

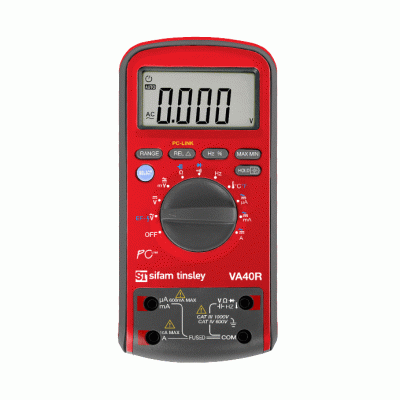

VA40R Digital Multimeter. This digital multimeter is ideal for use in the fields, workshop, school, hobby and home applications. This instrument complies with IEC 61010-1: 2001, CAT Ⅲ 1000V and CAT Ⅵ 600V overvoltage standards.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • DATA HOLD mode
  • Manual ranging and Autorange mode
  • Battery Saver
  • Relative measurement mode
  • TRUE RMS measurement
  • AC and DC Voltage measurement
  • Resistance measurement
  • Diode Test
  • Continuity Check
  • Capacitance measurement
  • Frequency and Duty Cycle measurement
  • Temperature measurement
  • Current measurement
  • PC Link
  • Environment conditions: 1000V CAT Ⅲ and 600V CAT Ⅳ
  • Pollution degree: 2
  • Altitude < 2000m
  • Operating temperature: 0~40℃, 32℉~122℉(<80% RH, <10℃ non-condensing)
  • Storage temperature: -10~60 ℃, 14℉~140℉(<70% RH, battery removed)
  • Temperature Coefficient: 0.1×(specified accuracy) / ℃ (<18℃ or >28℃)
  • MAX. Voltage between terminals and earth ground: 1000V AC rms or 1000V DC.
  • Fuse Protection: A and mA: F 0.63A/1000V ∅10.3×38; A: F 10A/1000V ∅10.3×38.
  • Sample Rate: 3 times/sec for digital data.
  • Display: 3 5/6 digits LCD display. Automatic indication of functions and symbols.
  • Range selection: automatic and manual.
  • Over Range indication: LCD will display “OL”.
  • Low battery indication: The “” is displayed when the battery is under the proper operation range.
  • Polarity indication: “–” displayed automatically.
  • Power source: 9V battery
  • Battery type: 6F22.
  • Dimensions: 190(L)×90(W)×40(H) mm.
  • Weight: 500g. Approx. (battery included).
VA40R Datasheet
