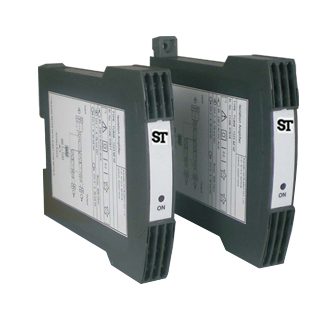

Theta 60I – Isolating Amplifier

The purpose of the isolating amplifier Theta 60I is to electrically insolate input and output signals, respectively to amplify and / or change the signal level or type (current or voltage) of the input signals.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Features
Downloads

252 standard input and output combinations selected by soldered jumpers
User-specific input and / or output ranges
Isolating amplifier with one input one or two electrically insulated outputs.
Power supply 24…60VDC/AC or 85…230VDC / AC
Electric Isolation between input, output and power supply, prevents falsified measurement due to spurious potentials.
Flexibillity provided by more than 250 different input and output combinations selected by simply positioning soldered jumpers, help in reduced stocking.
Processes unipolar/ bipolar and live zero signals provision for raising burden and signal conversion Green LED signals indicates device in operating condition.
High Electrical Insulation between input and output – 2.3KV, and power supply versus all Other Circuits-3.7 KV
Provision for either snapping the isolating amplifier on to top-hat rails or securing it with screw to a wall or panel.

Theta 60I User Manual
