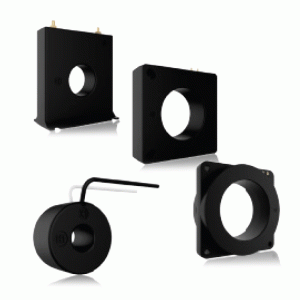

Omega ANSI Type

The ANSI Metering Class transformers are intended for power monitoring applications where high accuracy and minimum phase angle error are required. They are specially designed to be compliant with relevant ANSI standards.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • Applicable standard : ANSI/IEEE C57 .13
  • Case: 10% glass filled polycarbonate, flame retardant grades classified UL 94V-0.
  • Insulation Level: 600 Volts, 1 0KV BIL full wave
  • Non-standard length possible if specified
  • For all the SHT & SFT types terminals are brass studs No. 8-32 with one flat washer, lock washer & regular nut
  • All the SHT & SFT models also available as SHL & SFL with leads
  • For all the SHT types mounting bracket kit when required.
Omega ANSI CT Selection Guide
