OMEGA 10 (Split Core CT's) High Accuracy Class 0.5S

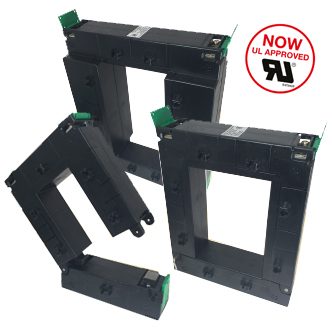

OMEGA 10 Split Core CT's - High Accuracy Class 0.5S

Omega series split core transformers offer a cost effective and efficient method by which the current can be measured without the need to break the conductor, thereby reducing installation and commissioning time.

These high accuracy 0.5S versions means that the measurement has an error rate of 0.5% over a range of 20 to 120% of the nominal current (In) and at a specific accuracy above 1% of In.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • Compliant with EN 60044-1 / IEC 61869-1 Accuracy Class 0.5S
  • Flame retardant grade enclosure
  • Operation free installation
  • Test voltage 3kV 50Hz 1 min.
  • System voltage 720V max.
  • Ratio ratings from 400/5A to 4000/5A
  • Available in 0.5, 1 and 3 accuracy class
  • Insulation class: E
  • UL approved
  • High measuring accuracy
  • The very high 0.5S accuracy class guarantees maximum metering, even with low loads.
  • A 0.5S accuracy class means that the measurement has an error rate of 0.5% over a range of 20 to 120% of the nominal current (In) and at a specific accuracy above 1% of In.
OMEGA 10 Datasheet
