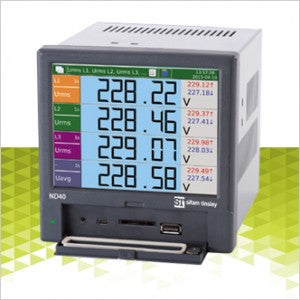

ND40 – Power Network Analyser / Recorder

Features• Measuring class A – for 3 second aggregation. 10 minute and 2 hour aggregation – class S
• Operation in 3 or 4-wire, 3-phase, balanced or unbalanced power networks measurement and recording of energy quality parameters according to EN 50160 standard intuitive operation of the device using a touch screen and graphical user interface based on Linux colour touch screen LCD TFT 5,6”, 640×480 pixels
• Analysis of current and voltage harmonics up to the 51 st for class I (acc. to EN 61000-4-7)
• Configurable archives of actual values and event recording
• Data archiving on an SD card – memory up to 32 GB
• Configurable archives of actual values and event recording communication interfaces : Ethernet 10/100 Base-T, Modbus TCP/IP Slave, RS-485 Modbus Slave all phases are separated IP65 casing protection on the user’s side selection of the time zone, automatic adjustment for Daylight Saving Time, synchronization with time server WWW server, FTP server logs of decays, dips, swells, alarms and audits Firmware update option language choice Dedicated visualization in the form of the following displays, among others: digital, analog, harmonics, vector diagrams, trends, waveform records
• IP65 protection grade from the frontal side
• Synchronization of RTC clock with the NTP time server
• Overall dimensions: 144 x 144 x 104 mm.
