Sifam Tinsley

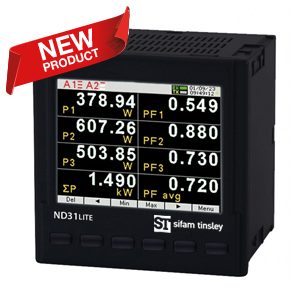

ND31LITE

Sifam Tinsleys ND31LITE network parameter meter, has been designed specifically for applications requiring high-quality measurement equipment that will provide the customer the ability to monitor network parameters via the popular and reliable RS-485 interface with MODBUS protocol.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Features
Downloads

Features

Measurement of 54 power network parameters, including current and voltage harmonics up to 63rd in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
High accuracy class (0.2S for active energy).
Graphical color display: LCD TFT 3,5’’, 320 x 240 pixels, fully configurable by a user (10 screens, 8 parameters in each).
Additional 2 screens for harmonics presentation and 1 dedicated screen for visualization in the form of an analog meter.
Indications include the values of programmed ratios.
Memory of minimum and maximum values
2 configurable alarm outputs.
Supervisory relay mode for alarm outputs.
Programming of parameters using free eCon software.
Battery backup RTC.
Overall dimensions: 96 x 96 x 77 mm.

ND31 Lite Datasheet

ND31 Lite User Manual

ND31 Normal/Lite Power Network Meters
