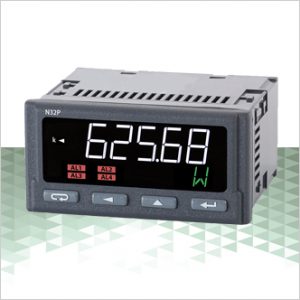

N32P

N32 meter is destined to measure

• Single-phase network parameters: voltage, current, active, reactive and apparent power, cosφ, tgφ, frequency, active, reactive and apparent energy, active power 15 minutes, voltage 10 minutes.
• Current and voltage harmonics analysis up to 51st (measurements available via RS-485).

Programmable input:

• Current 0…1 or 0…5A
• Voltage 0…100V / 0…230V / 0…400V

Output:

• Analog 0/4...20mA or 0...10V (option)
• Relays (1 or 4)
• Binary (OC)

Features:

• Two-line LCD display with high contrast and built-in backlighting.
• Possibility of displaying the measured value and time simultaneously or an second measured value or unit (automatically displayed unit of measured quantity).
• High sampling frequency of measured signals 8 kHz.
• Parameters programming via buttons or RS-485 interface and free eCon software.
• 4 alarm outputs with signaling on led diodes, working in 7 different modes (option).
• Possibility to program each of the alarms to react to a different measurements.
• The function of the switch-on delay and switch-off delay of the alarm with the alarm event memory.
• Pulse output to control energy consumption.
• Conversion of any measured value into an analog signal 0/4...20 mA or 0...10V (option).
• Memory of minimal and maximal values for all measured quantities.
