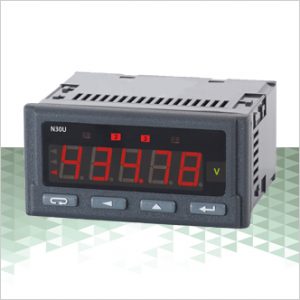

N30U

The N30U meter is destined for the measurement of temperature, resistance and standard signals.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Features
Downloads

Input:temperature:resistance thermometers: Pt100, Pt500, Pt1000thermocouples: J, K, N, E, R, Sresistance: 400 ohm, 4000 ohmcurrent: ± 20 mAvoltage: 0…10 V, -10…60 mV
Output: relay (4), analog (1), digital RS-485/MODBUS (1),
Three-colour display - red, green and orange, programmable in three intervals of the measured value – facilitates the observation of measured value changes.digit height: 14 mmhighlighted measuring unit
Four alarm outputs with signaling on LED diodes operating in six different modes.
Conversion of any measured value into an analog signal: 0/4…20 mA or 0…10 V.
Storage of minimal and maximal values for all measured quantities,
Mathematical functions - avalaible from 2.04 version
Meter programming from the keyboard or through the RS-485 interface by means of the free eCon software
One can reprogram following parameters:display colour, individually in three intervals,thresholds of displayed overflows,display precision of the result (decimal point),unit highlighting,measurement averaging time,recount of indications (individual characteristic),parameters of alarm outputs.
Supply: 85…253 V a.c./d.c. or 20…40 V a.c./d.c.
Casing protection grade : IP65
Overall dimensions: 96 x 48 x 64 mm

N30U Datasheet

N30U Service Manual

N30U Quick Start Guide
