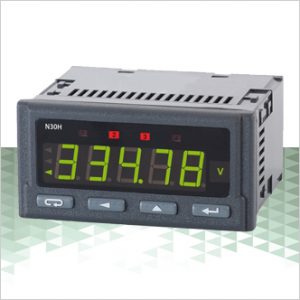

N30H

The N30H meter is destined for the measurement of d.c. current and d.c. voltage up to 5 A and 600 V.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Features
Downloads

Input: d.c. current 6 A d.c. voltage 600 V
Output: relay (4), analog (1), digital RS-485/MODBUS (1),
Three-color display – red, green and orange, programmable in three intervals of the measured value – facilitates the observation of measured quantity changes.digit height: 14 mmhighlighted measuring unit
Four alarm outputs with signaling on LED diodes operating in 6 different modes,
Conversion of any measured optional values into the analog signal 0/4…20 mA or 0…10 V,
Storage of minimal and maximal values for all measured quantities,
Meter programming from the keyboard or through RS-485 interface by means of the free eCon software.
Parameters which can be reprogrammed:display color, individually in three intervals,thresholds of displayed overflows,precision of displayed results (decimal point),unit highlighting,measurement averaging time,indication recounting (individual characteristic),alarm output parameters,
Supply: 85…253 V a.c./d.c. or 20…40 V a.c./d.c.
Casing protection grade: IP65
Overall dimensions: 96 x 48 x 64 mm

N30H Datasheet

N30H Service Manual

N30H Quick Start Guide
