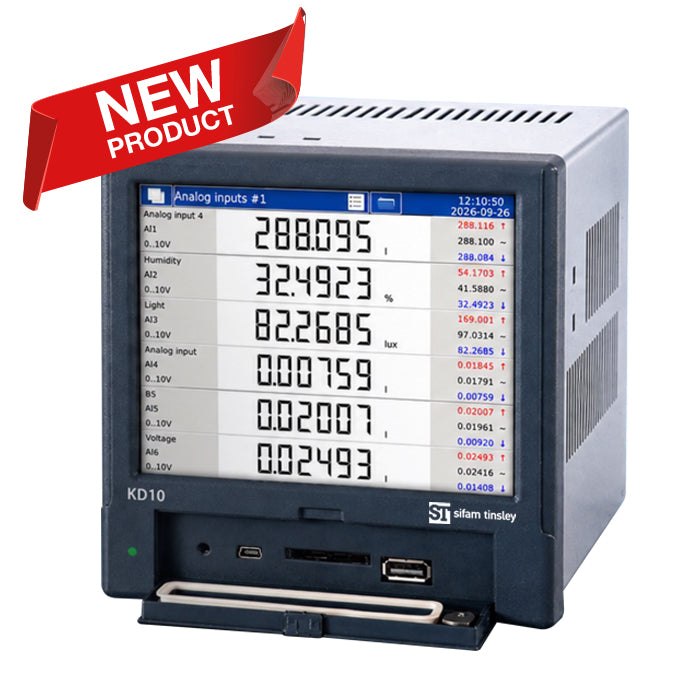

KD10

The KD10 recorder is a modern measuring and recording device designed for the measurement, visualization, and control of technological process parameters in various branches of industry, such as the food, chemical, and paper industries, among others. It can be used as a data acquisition station in measurement and control systems.

The KD10 enables the measurement of voltage, current, temperature, resistance changes, and other quantities converted into an electrical signal or parameter. Communication interfaces (Ethernet, RS-485) can also serve as sources of measurement data. The processed measurement data are stored in internal memory as well as on an SD card.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271
  • Intuitive operation via touchscreen based on the graphical 5.6" TFT type colour LCD display, 640x480 pixels
  • Up to 52 logical channels (max. up to 18 analog channels, 2 temperature channels, max. up to 32 logical channels),
  • Input :

o   Measuring Programmable (6, 12 or 18)
o   Measuring 2x Pt100 / Pt1000 / resistance
o   Binary (0,4 or 6)
o   Modbus TCP/RTU Master (up to 32 devices via TCP, up to 10 registers from one Slave device)

  • Output :

o   Relay (0, 4, 8)
o   Analog (0, 3 or 6)
o   Digital RS-485 Modbus

  • Supply voltage : 85...253V a.c., 90...300V d.c.
  • Depending on needs, the user has the choice of following communication interfaces: RS-485 MODBUS Slave, RS-485 MODBUS Master,  ETHERNET (MODBUS TCP/IP, WWW, FTP, DHCP), USB Host 2.0.
  • Exchangeable external memory (SD card), up to 32 GB
  • Digital signature for archived data stored in SQLite3 or CSV format
  • Server WWW allows you to view the current state of the recorder through any web browser
  • Advanced mathematical functions on measured values,
  • Selection of multiple forms of data presentation, including digital displays, analog displays, and trends
  • External dimension: 144 X 144 X 104 mm
