Sifam Tinsley

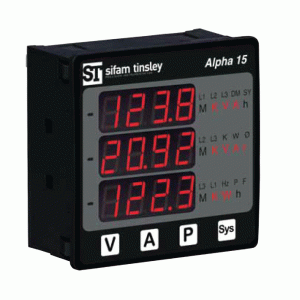

Alpha 15

The Alpha 15 measures important electrical parameters in 3 phase 4 Wire and 3 phase 3 Wire Network & replaces the multiple analog panel meters. It measures electrical parameters like AC Voltage, AC Current, Frequency, Active, Reactive, Apparent Power & many more.

Sales & Support

A dedicated support team to support new purchases, technical queries, troubleshooting, and delivery information.

Call 01376 335271

Features
Downloads

Fast & Easy Installation on panel with self clicking.
True RMS measurement.
Limit Switch (optional).
3 Line 4 Digits ultra bright LED Display (up to 9999).
On site Programmable CT/PT Ratios.
User selectable CT Secondary 1A/5A.
User selectable PT Secondary from 100 VLL to 500 VLL.
User selectable 3ph3wire / 3ph4wire / single phase Network.
Two auxillary Power Supply available 40V – 300V AC DC or 12V-48V DC.
Storage of MIN / MAX values.
Measurement & Display of RPM, Run hours, On hours, No. of interruption.

Alpha15 Datasheet
