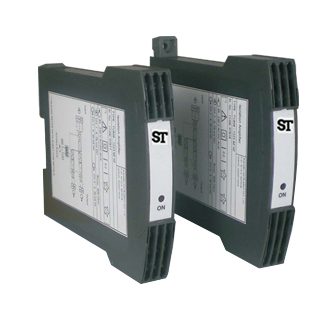

Theta 60I

The purpose of the isolating amplifier Theta 60I is to electrically insolate input and output signals, respectively to amplify and / or change the signal level or type (current or voltage) of the input signals.

Features

  • 252 standard input and output combinations selected by soldered jumpers
  • User-specific input and / or output ranges
  • Isolating amplifier with one input one or two electrically insulated outputs.
  • Power supply 24…60VDC/AC or 85…230VDC / AC
  • Electric Isolation between input, output and power supply, prevents falsified measurement due to spurious potentials.
  • Flexibillity provided by more than 250 different input and output combinations selected by simply positioning soldered jumpers, help in reduced stocking.
  • Processes unipolar/ bipolar and live zero signals provision for raising burden and signal conversion Green LED signals indicates device in operating condition.
  • High Electrical Insulation between input and output – 2.3KV, and power supply versus all Other Circuits-3.7 KV
  • Provision for either snapping the isolating amplifier on to top-hat rails or securing it with screw to a wall or panel.

Digital download files available for Theta 60I.
